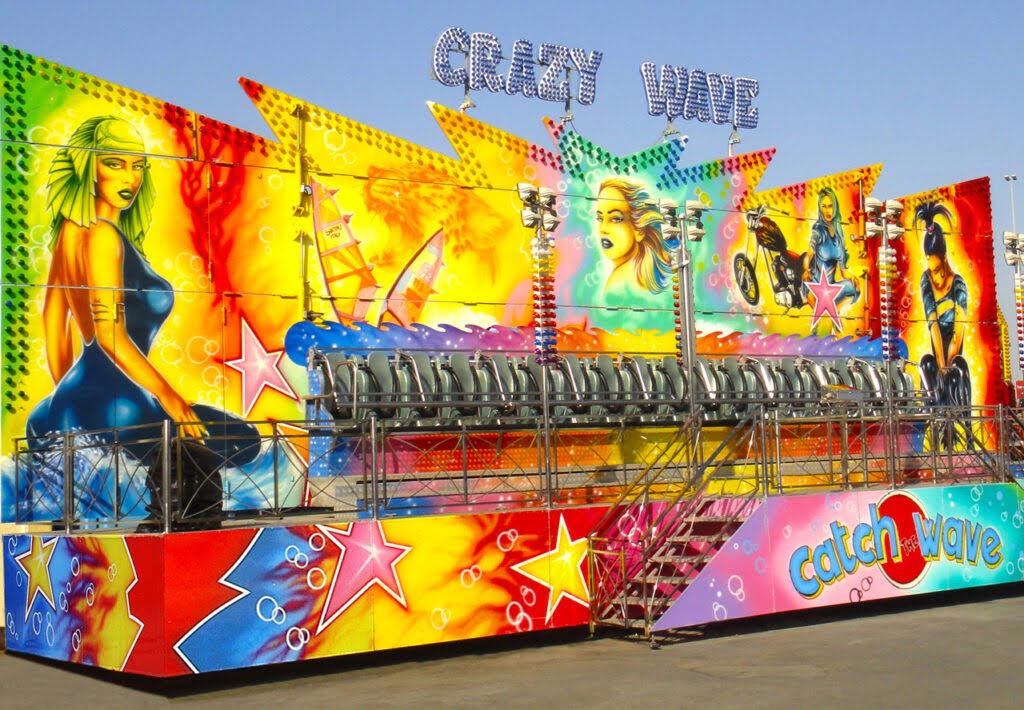

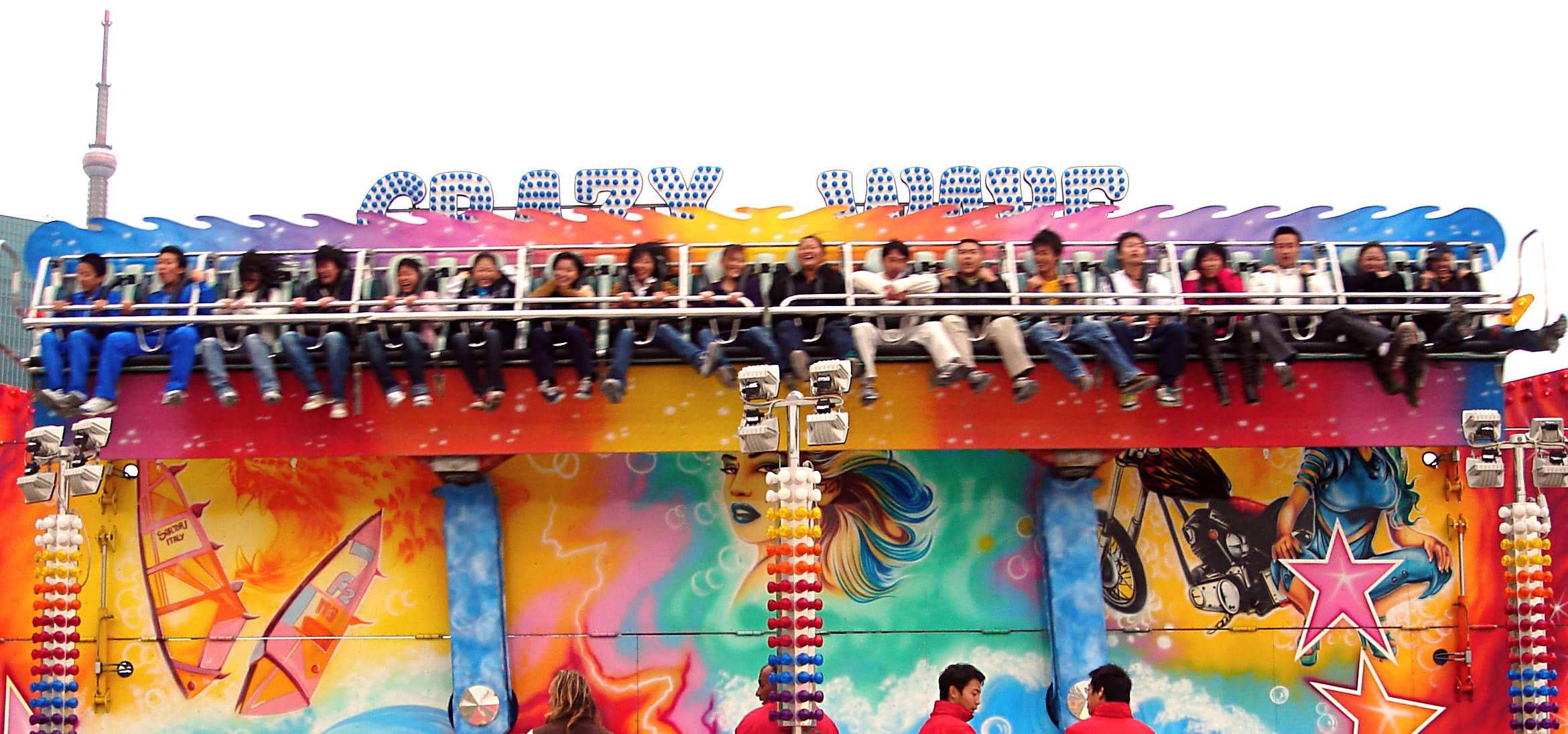

This Ride consists of a multi seat bench mounted on bearings which are in turn mounted on two crank arms which rotate in a vertical plane, which is parallel to the vertical plane of the back of the bench. The crank arms are driven by a pair of high torque hydraulic motors via a pinion and spur wheel. The motors are driven in parallel by a single electric motor driving a variable displacement hydraulic pump. This is controlled by means of a joy stick handle mounted on the control panel.
Hands In The Air
Technical Detail
Width | 16m |
Depth | 6m |
Height | 9m |
Speed | 210 m/in |
Vehicle | 1 |
Seating | 18 |
Theoretic Capacity | 400 persons per hour approx. |
